Beschreibung

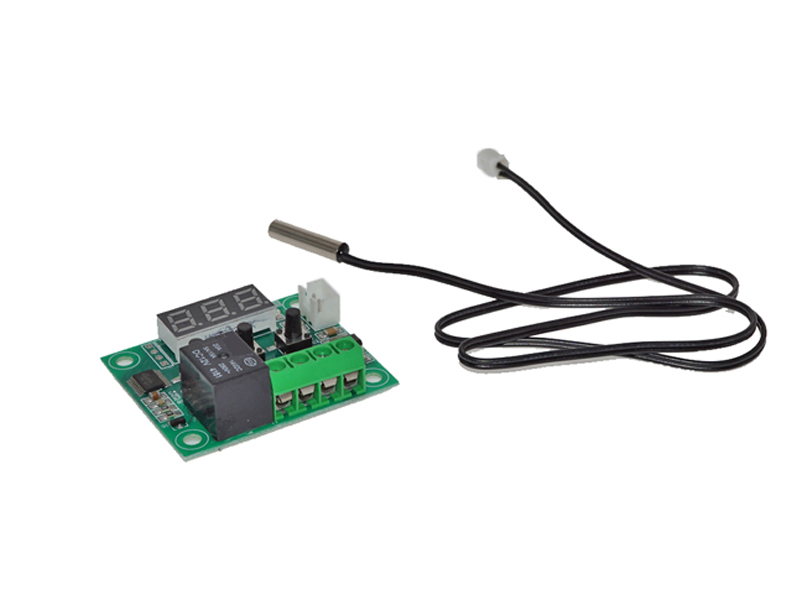

ALLNET 4duino präzisions Temperatur-Steuerung mit 12V DC Relay Benötigt 12V DC Stromversorgung !!! XH-W1209 Thermostat Switch Plate High-Precision Digital Temperature Control Board Module Product Description 1.Indicator: OFF indicates the relay is switched off ALWAYS indicates the relay is closed. 2.LED: shows LL means the sensor opens shows HH means it’s out of range, the thermostat will be forced to close the relay, the display — as high temperature protection. 3.Temperature Range: -50~110°C. 4.Resolution: 0.1°C(-9.9~99.9°C), 1°C(Other Ranges). 5.Accuracy: 0.1°C. 6.Refresh Rate: 0.5s. 7.High Temperature Protection: 0~110°C. 8.Input Power: DC 12V. 9.Static Current: =35mA, Attract Current: =65mA. 10.Measurement Input: NTC(10K 0.5%) Waterproof Type Sensor. 11.Output Range: 1 Channel 10A Relay Output. 12.Size: Approx. 48x40x15mm.
