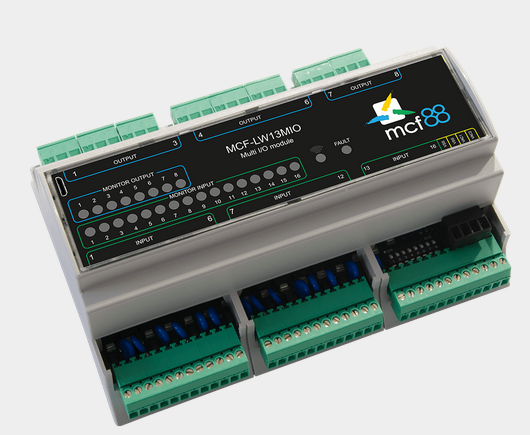

LoRa MCF88 LoRaWAN Multi Multi I/O Module LoRaWAN® Multi I/O module This device transmits the state of its 16 inputs and controls 8 outputs through the LoRaWAN® network. All these inputs and outputs are galvanically isolated. It can be used for industrial process control, home automation, water treatment, agriculture irrigation and similar applications. Technische Daten: – CPU Cortex M0 – RTC – EEProm 32KB – Flash 96KB – Encryption AES 128 bit – Class C LoRaWAN®™ stack EU868, AS923 – 16 opto-isolated input AC-DC, range 5-24Vac/dc – 8 relay output with COM, NO, NC contacts carrying 5Amp@230Vac – USB port for IoT node setup ad FW upgrade – CANBUS interface – Power supply 24 Vac/dc – Storage temperature range -20 + 80C° – Working temperature range -10 + 70C° – DIN (EN 60715) mounting enclosure, 9 modules
