Beschreibung

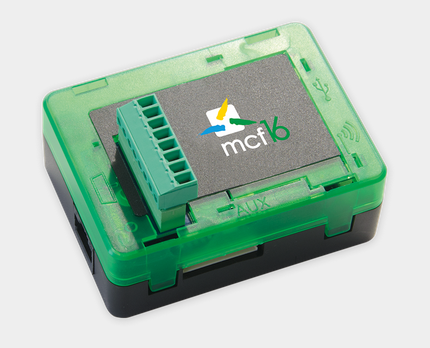

LoRa MCF88 LoRaWAN 4-20mA/0-10V to LoRaWAN® interface This interface has two 4-20mA and two 0-10V input channels. All these inputs are opto isolated and are useful to connect any kind of analog sensor and to forward measurements to the LoRaWAN® platform. Applications: Remote industrial interface Remote process supervisor Environment monitor Datalogger Technical Data: CPU Cortex M4 RTC EEProm 32KB Flash 1MB Encryption AES 128 bit LiPo rechargeable battery Class C LoRaWAN® stack EU868, AS923 1000Vdc isolated analog inputs 2 analog current inputs 4-20mA 12bits with disconnect alarm 2 analog voltage inputs 0-10V 12bits USB On The Go IoT node setup ad firmware upgrade via USB interface Power supply 10-36Vdc Storage temperature range -20 + 80 °C Working temperature range -10 + 70 °C Dimensions L x H X P: 81 x 60 x 50mm
